| Colour / Finish | RAL 7037 dust grey |
|---|
| Depth Adjustment | +/-3 mm |
|---|
| Description | L3 (15-40 kg) |
|---|
| Ean_Number | 9009494092677 |
|---|
| Fixing Method | to slip-on |
|---|
| Item Package | left |
|---|
| Material | Nylon/steel |
|---|
| Nominal Length Of | 350 |
|---|
| Nominal Length Up To | 600 |
|---|
| Packaging | industrial packing |
|---|
| Product Group | LEGRABOX |
|---|
| Self-Closing Distance | 12 |
|---|
| Spezification | top |
|---|
| Stopping Distance | 41.5 |
|---|
| Total Weight Of The Pull-Out | 1540 |
|---|
| Trigger Path | 1 |
|---|
| Triggering Force | 22 |
|---|
| Type | TIP-ON BLUMOTION unit |
|---|
| Type Of Depth Adjustment | convenient with spiral screw |
|---|
| Version | Optional part |
|---|
| Dynamic Load Bearing | 40 |
|---|
| Finish | R7037 dust grey |
|---|

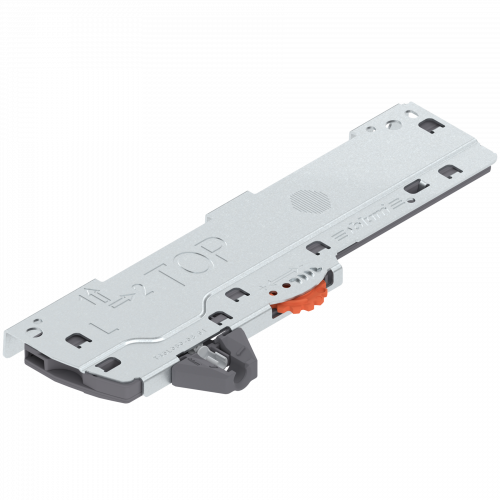

T60L7543
TIP-ON BLUMOTION unit
for LEGRABOX
for MOVENTO
L3 (15-40 kg)
dynamic load bearing: 40 kg
Nominal Length: 350-600 mm
Trigger path: 1 mm
Material: Nylon/steel
Colour / finish: RAL 7037 dust grey
Fixing method: to slip-on
Depth adjustment: +/-3 mm
Item package: left
