| Assembly Type | Side mounted |
|---|
| Bearing Height | 27.5 |
|---|
| Blumatic | integrated Blumatic |
|---|
| Cabinet Profile Fixing | with screws |
|---|
| Cabinet Profile Width | 39.3 |
|---|
| Colour / Finish | zinc plated |
|---|
| Drawer Profile Width | 29.6 |
|---|
| Drawer Runner Version | with front tilt adjustment |
|---|
| Drawer Type | Full extension |
|---|
| Dynamic Load Bearing | 30 |
|---|
| Ean_Number | 9002617560183 |
|---|
| Item Package | Set |
|---|
| Material | Steel |
|---|
| Motion Technology | TIP-ON |
|---|
| Mounting Width (Incl. Spacing) | 21 |
|---|
| Nominal Length | 300 |
|---|
| Packaging | industrial packing |
|---|
| Type Of Runner System | TANDEM plus |
|---|
| Additional Features | with TIP-ON |
|---|
| Length Of Cabinet Profile | 283.5 |
|---|
| Minimum Internal Cabinet Depth | 303 |
|---|
| Over Extension | 5 |
|---|
| Runner System | Tandem roller carriage |
|---|
| Finish | Zinc plated |
|---|
| Length | 300 |
|---|
| Type | Full extention TOB |
|---|
| Weight | 30 kg |
|---|

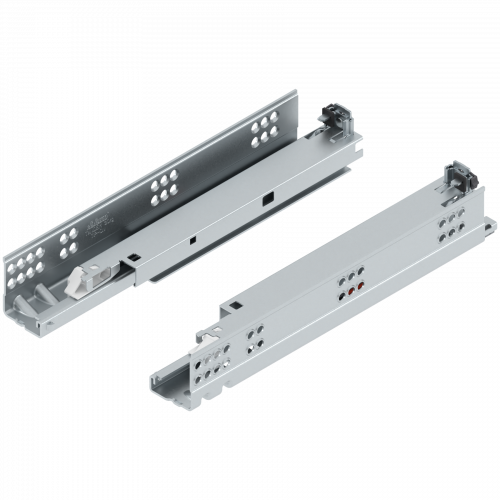

560H3000T
TANDEM plus TIP-ON Full extension
Nominal Length: 300 mm
drawer length (SKL): 290 mm
Full extension
Material: Steel
dynamic load bearing: 30 kg
for Panel thickness 11-16 mm
Colour / finish: zinc plated
for locking device
Item package: Set
