| Additions | Energy Star VI |
|---|
| Batch Label | Yes |
|---|
| Cabinet Width | 600 |
|---|
| Cable length | Comes as a standard cabinet width of 600 mm, but can be cut down |
|---|
| Depth | Fits any drawer depth, allow an additional 20 mm depth |
|---|
| Finish | R7037 dust grey |
|---|
| Fixing Method | clip-on |
|---|
| Frequency | 47 to 63 Hz |
|---|

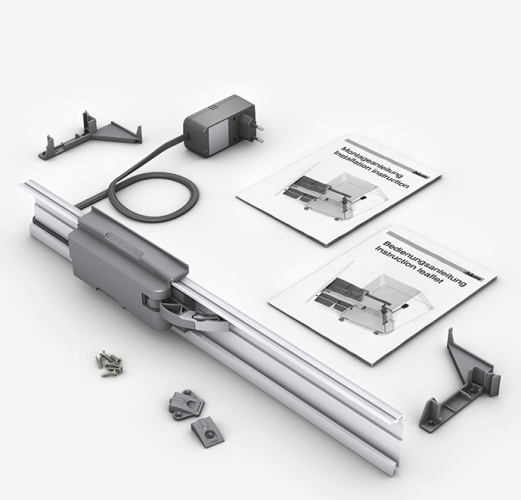

| Item Package | Set with plug-in transformer, pre-mounted, with assembly accessories |
|---|
| Language Package | I |
|---|
| Languages | English |
|---|
| Material | Aluminium |
|---|
| Nominal Voltage | 24 |
|---|
| Operating Power | 24 |
|---|
| Output Flex Length | 1.1 |
|---|
| Packaging | Commercial packing |
|---|
| Position | Left |
|---|
| Power Connection | Piercing (metal spikes) |
|---|
| Protection Category | IP20 |
|---|
| Protection Class | Extra-low voltage |
|---|
| Rated Output | 12 |
|---|
| Safety Certificate | CE/UL/PSE/EAC/NOM/ukrSEPRO/S-Mark/RCM/KC/BSMI |
|---|
| Suitable for | Cabinet side panel thickness 15-16 mm |
|---|
| Trigger Type | Pushing and pulling |
|---|
| Type | Top mount waste bin solutions |
|---|
| Type Of Connection | 1-phase |
|---|
| Version | Pre-mounted |
|---|
| Voltage | 24V Watts:16W |
|---|
Z10UT60BI
SERVO-DRIVE uno for Top mount waste bin solutions
Power connection: Piercing (metal spikes)
Output flex length: 1.1 m
nominal voltage: 24 V
Operating Power: 24 V
Voltage type: direct current
Protection category: IP20
Protection class: Extra-low voltage
