| Adjustment facility | Height ±2 mm side +3/-1 mm tilt ±1.5 mm and pull adjustment facility |
|---|---|
| Material | Stay: Zinc alloy |

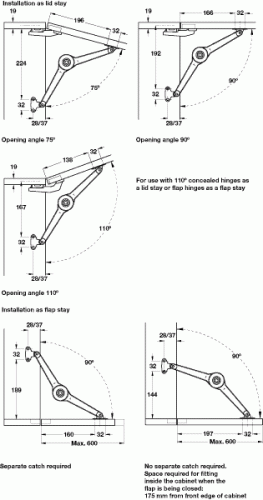

| Opening angle | 75°, 90° or 110° |
| Order reference | Order Hospa Ø 3.5 raised head or Varianta Ø 5 mm countersunk screws separately |
| Area of application | for flaps made from wood or with aluminium frame, from frame width of 45 mm |
| Finish/colour | Nickel plated |
|---|---|
| Model series | Duo |
| Mounting | For left and right hand use |
| Supplied with | 1 lid stay1 mounting bracket for cabinet1 screw-on bracket for flap |
| Warranty | This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested accordin |
