| Application | For installation into woodwork or masonry walls |
|---|---|
| Colour | Eccentric sleeve: Black |

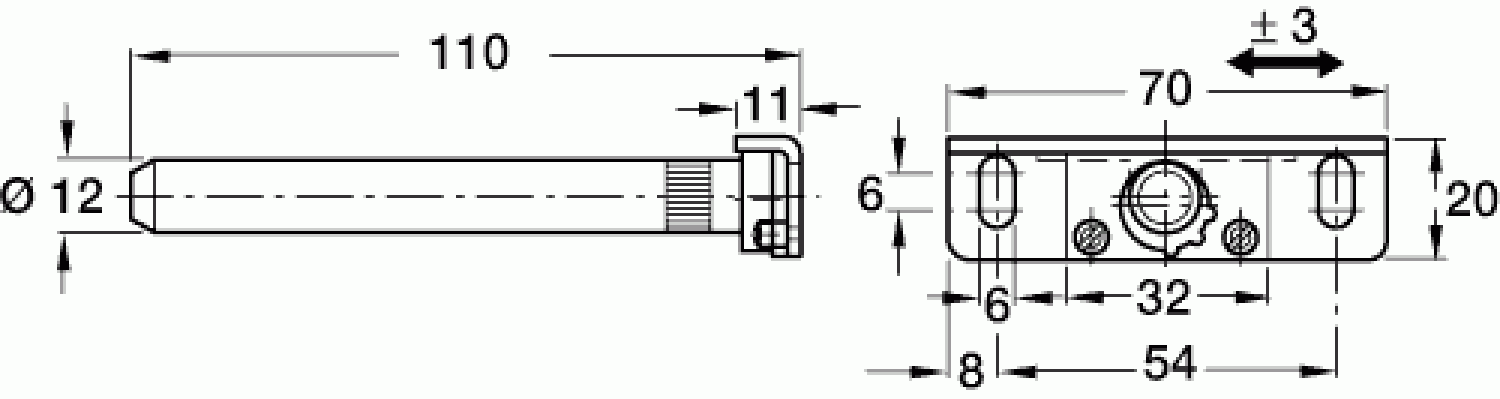

| Drilling pattern | Drilling and routing dimensions in shelf |
| Finish | Galvanized |
| Installation | For screw fixing to support elementFor mounting in drilled hole in shelf |
|---|---|
| Load bearing capacity | Load bearing capacity (with shelf support spacing = max. 700 mm and evenly distributed load)Shelf depth mmmax. load bearing capacity kg/m21751802001602251302501002758030050 |
| Material | SteelEccentric sleeve: Plastic |

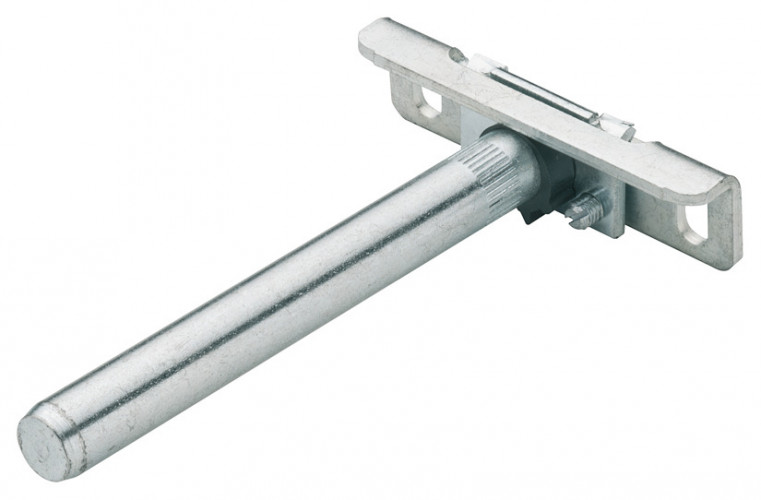

| Supplied with | 1x Supporting pin with mounting plate, galvanized steel 1x Pre-mounted plastic sleeve2x Adjusting screws for inclination adjustment |
