| Adjustment facility | Three-way adjustment:Vertical adjustment: 11 mmHorizontal adjustment: 10 mmLateral adjustment: 12mm |
|---|---|
| Application | For hanging wall units |
| Installation | Screw fixing: A 3.5 x 20 mm lateral wood screw permanently secures the cabinet hanger in place (not provided) |
| Load bearing capacity | 260 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load in accordance with regulation DIN 68840) |
| Material | Steel |
|---|---|
| Note | Cabinet hangers should only be adjusted with a hand tool and not a power tool |

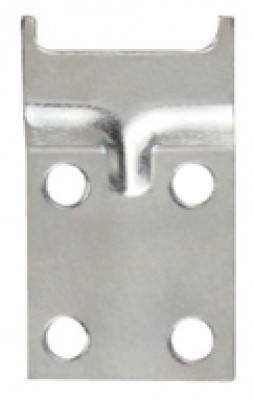

| Order reference | Wall plates and cover caps must be ordered separately |
