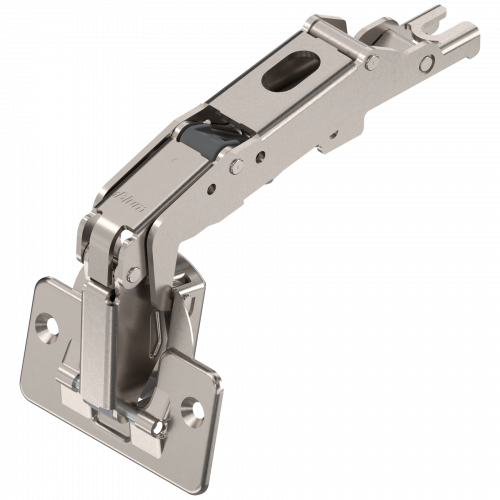

Actual product may vary from image shown i.e. colour/finish/size
MODUL wide angle hinge 170°, OVERLAY, boss: SCREW-ON, nickel
Order Within
{timeLeft}
to get next day delivery
Loading Available Stock...
Product Information
| Application | wide angle hinge |
|---|---|
| Arm Finish | Nickel plated |
| Arm Material | Steel |
| Boss Adjustment | none |
| Boss Assembly | screw-on |
| Boss Depth | 10.5 |
| Boss Drilling Depth | 11 |
| Boss Finish | Nickel plated |
| Boss Flange Dimensions | Boss flange 09 |
| Boss Material | Steel boss |
| Closing Mechanism | with spring |
| Cover Cap Type | rectang., straight, centre fixing, length 32 mm, w |
| Cranking | Overlay application |
| Dampening | None |
| Depth Adjustment | +/- 2 mm |
| Diametre Hinge Boss Drilling | 35 |
| Distance Between Drillings | 45 |
| Door Material | Wood |
| Drilling Pattern Boss | drilling pattern 02 |
| Ean_Number | 9002617363050 |
| Flange Height | 2.2 |
| Flange Length | 30.5 |
| Flange Width | 57 |
| Item Package | 1 piece |
| Maximum Drilling Distance | 8 |
| Minimum Drilling Distance | 3 |
| Mounting Plate System | MODUL |
| Opening angle | 170 |
| Packaging | industrial packing |
| Pivoting Point System | 170° |
| Product Combination | No |
| Side Adjustment | +/- 2 mm |
| Type Of Depth Adjustment | With screw |
| Type Of Side Adjustment | With screw |
