| Adjustment facility | Height adjustment ± 4 mm |
|---|---|
| Application | Interior doors |
| Door height | Max. 2300 mm |
| Door thickness | Min. 26 mm |
| Door weight | Max. 80 kg |
| Installation | Suspension with screwed on two-way suspension |
| Material | Aluminium/Plastic/Rubber |
| Order reference | Tracks, fitting sets, accessories and fixings to be ordered separately |
|---|---|
| Suitable for | Hawa-Symmetric 80/Hawa-Telescopic 80 2/ Hawa-Telescopic 80 3 |

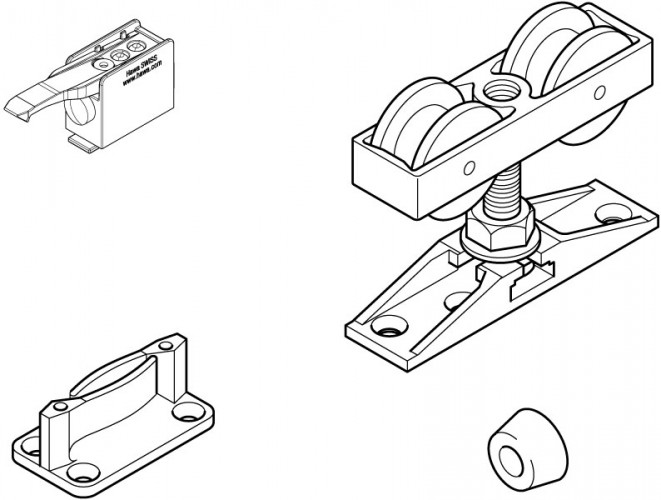

| Supplied with | Set with Softmove 80 consists of 2 x Track stopper, for adjustable mounting in top track, zinc alloy, black painted housing, 2 x Junior 80/Z trolley hangers, sleeve bearing mounted ? 34 mm hi |
| For door width | 690?–?3,000 mm |
| Model | Junior 80/Z |
| Standard | Certified in compliance with EN 1527:2013 |
