| Application | CRISTALLO glass door |
|---|
| Boss Assembly | glue-on |
|---|
| Closing Mechanism | unsprung |
|---|
| Cover Cap Type | 70.4503 |
|---|
| Cranking | Overlay application |
|---|
| Dampening | None |
|---|
| Depth Adjustment | + 3/- 2 mm |
|---|
| Door Material | Glass/mirror |
|---|
| Gap | 1.5 |
|---|
| Hinge Variant | with free movement for TIP-ON |
|---|
| Item Package | 1 piece |
|---|
| Mounting Plate System | CLIP |
|---|
| Opening angle | 110 |
|---|
| Packaging | industrial packing |
|---|
| Side Adjustment | +/- 2 mm |
|---|
| Type Of Depth Adjustment | convenient with spiral screw |
|---|
| Type Of Side Adjustment | With screw |
|---|
| Finish | Nickel plated |
|---|
| Product Combination | No |
|---|

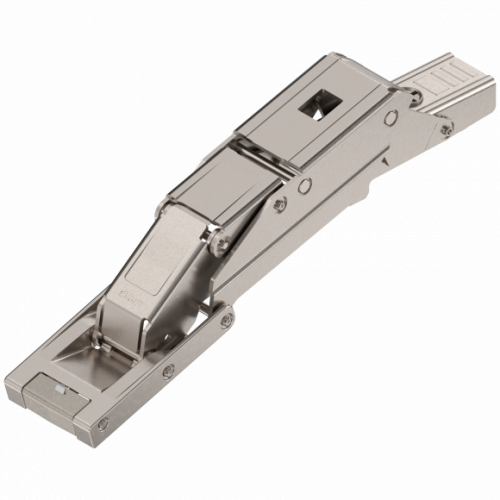

CLIP top CRISTALLO glass door 70T4500CTL
Opening angle: 110°
Cranking: Overlay application
Boss assembly: glue-on
Closing mechanism: unsprung
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm, convenient with spiral screw
