| Application | For installation into woodwork or masonry walls |
|---|---|

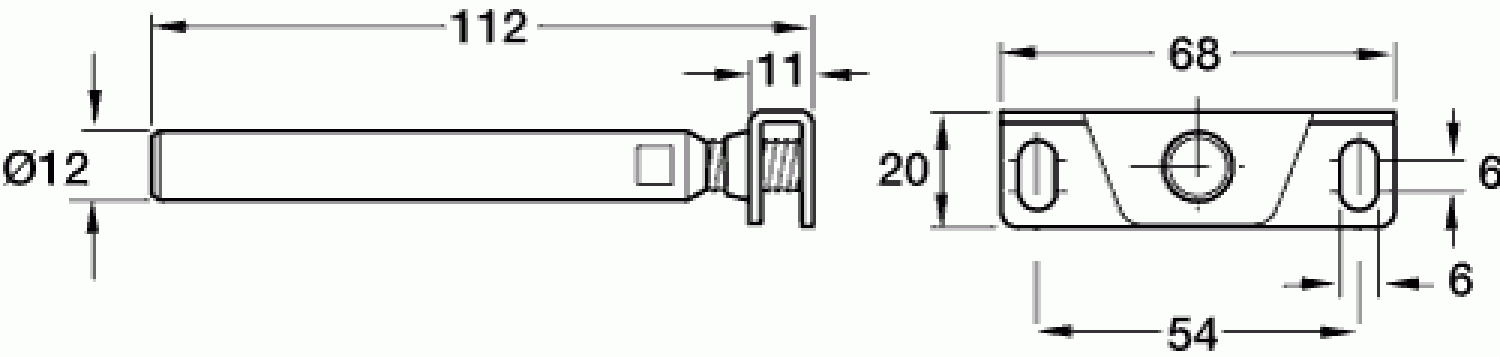

| Drilling pattern | Drilling and routing dimensions in shelf |
| Finish | Galvanized |
| Installation | For screw fixing to support elementfor mounting in drilled hole in shelf |
| Load bearing capacity | Load bearing capacity (with shelf support spacing = max. 700 mm and evenly distributed load)Shelf depth mmmax. load bearing capacity kg/m220020025014030080 |
|---|---|
| Material | Steel |
| Order reference | Hospa Screw Ø 5.0 mm is not supplied. Please order separately |

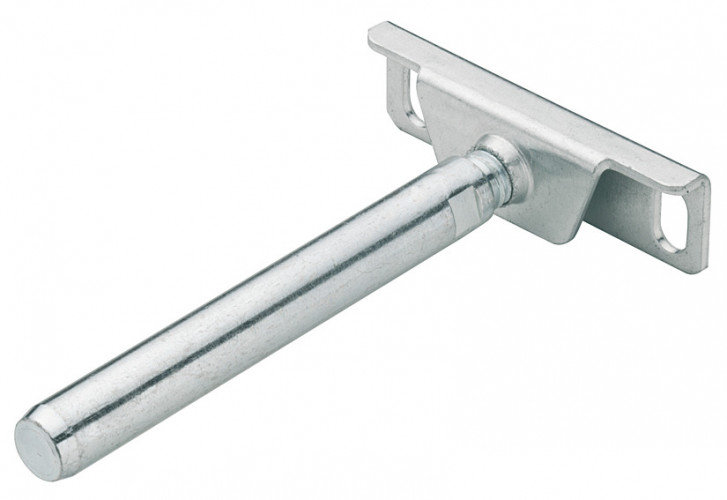

| Supplied with | 1 Supporting pin with mounting plate, galvanized steel |
