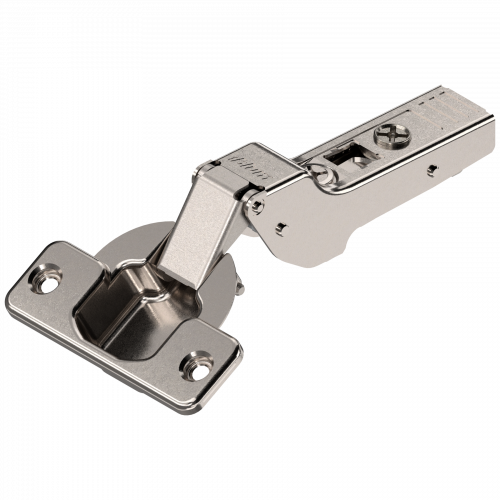

![CLIP top hinge 120°, dual applications, unsprung, boss: SCREW-ON, nickel](/assets/img/defaults/placeholder__product--large.png)
CLIP top hinge 120°, dual applications, unsprung, boss: SCREW-ON, nickel
Product Code:
70T5650.TL
Login/register*Check for trade prices
Order Within
{timeLeft}
to get next day delivery
Need more help, please email
For stock availablity for technical help
All stock figures and delivery times are estimates only. We will contact you ASAP should there be any change to your order.
Product Information
Application | standard hinge |
---|---|
Arm Finish | Nickel plated |
Arm Material | Steel |
Boss Adjustment | none |
Boss Assembly | screw-on |
Boss Depth | 12.5 |
Boss Drilling Depth | 12.6 |
Boss Finish | Nickel plated |
Boss Flange Dimensions | boss flange 01 |
Boss Material | Steel boss |
Closing Mechanism | unsprung |
Cover Cap Type | 94M3603 |
Cranking | Dual application |
Dampening | None |
Depth Adjustment | + 3/- 2 mm |
Diametre Hinge Boss Drilling | 35 |
Distance Between Drillings | 45 |
Door Material | Wood |
Drilling Pattern Boss | drilling pattern 02 |
Ean_Number | 9002617625684 |
Flange Height | 3.2 |
Flange Length | 20 |
Flange Width | 57 |
Gap | 1.5 |
Hinge Variant | with free movement for TIP-ON |
Item Package | 1 piece |
Maximum Drilling Distance | 6 |
Minimum Drilling Distance | 3 |
Mounting Plate System | CLIP |
Opening angle | 120 |
Packaging | Commercial packing |
Pivoting Point System | 120° |
Product Combination | No |
Side Adjustment | +/- 2 mm |
Spezification | top |
Type Of Depth Adjustment | convenient with spiral screw |
Type Of Side Adjustment | With screw |
