| Assembly Type | Side mounted |
|---|
| Bearing Height | 28.5 |
|---|
| Blumotion A. Blumatic Version | T57.768M00 |
|---|
| Cabinet Profile Fixing | with screws |
|---|
| Cabinet Profile Width | 40.9 |
|---|
| Colour / Finish | zinc plated |
|---|
| Distance Of Centre Profile | 692.55 |
|---|
| Distance Of Latch | 256.8 |
|---|
| Drawer Profile Width | 29.7 |
|---|
| Dynamic Load Bearing | 60 |
|---|
| Ean_Number | 9002617853537 |
|---|
| Furniture Components | Wooden drawer |
|---|
| Item Package | Set |
|---|
| Length Of Cabinet Profile | 568.5 |
|---|
| Length Of Centre Profile | 676 |
|---|
| Material | Steel |
|---|
| Minimum Internal Cabinet Depth | 703 |
|---|
| Motion Technology | TIP-ON |
|---|
| Mounting Width (Incl. Spacing) | 21 |
|---|
| Nominal Length | 700 |
|---|
| Over Extension | 1 |
|---|
| Packaging | Commercial packing |
|---|
| Pull-Out Type | Full extension |
|---|
| Runner System | Synchronised roller carriage system |
|---|
| Type Of Runner System | MOVENTO |
|---|
| Additional Features | with TIP-ON |
|---|
| Finish | Zinc plated |
|---|
| Length | 700 |
|---|
| Type | TIP-ON runner |
|---|
| Weight | 60 kg |
|---|

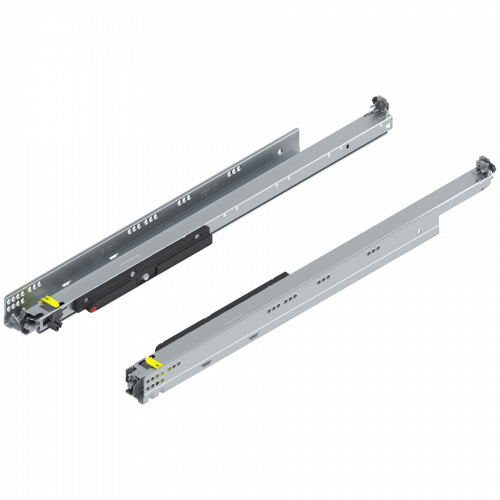

766H7000T
MOVENTO with TIP-ON
for Wooden drawer
Synchronised roller carriage system
Full extension
Nominal Length: 700 mm
dynamic load bearing: 60 kg
Material: Steel
Colour / finish: zinc plated
for locking device
Item package: Set
