Actual product may vary from image shown i.e. colour/finish/size

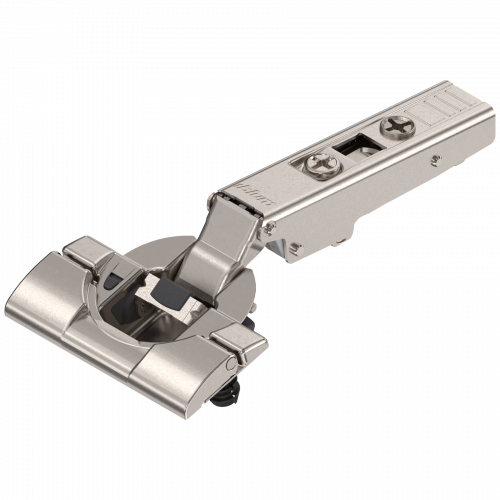

CLIP top BLUMOTION hinge 110°, OVERLAY, boss: INSERTA, nickel
Order Within
{timeLeft}
to get next day delivery
Loading Available Stock...
Product Information
Application | standard hinge |
---|---|
Arm Finish | Nickel plated |
Arm Material | Steel |
Boss Adjustment | none |
Boss Assembly | INSERTA |
Boss Depth | 12.8 |
Boss Drilling Depth | 13 |
Boss Finish | Nickel plated |
Boss Flange Dimensions | Boss flange 36 |
Boss Material | Steel boss |
Closing Mechanism | with spring |
Cover Cap Type | rectangular, horizontal, centre fixing |
Cranking | Overlay application |
Dampening | BLUMOTION |
Depth Adjustment | + 3/- 2 mm |
Diametre Hinge Boss Drilling | 35 |
Diametre Of Fixing Holes | 8 |
Distance Between Drillings | 45 |
Door Material | Wood |
Drilling Pattern Boss | drilling pattern 01 |
Ean_Number | 9002617768039 |
Flange Height | 6.4 |
Flange Length | 27.5 |
Flange Width | 57 |
Gap | 1.5 |
Hinge Variant | With integrated BLUMOTION |
Item Package | 1 piece |
Maximum Drilling Distance | 7 |
Minimum Drilling Distance | 3 |
Mounting Plate System | CLIP |
Opening angle | 110 |
Packaging | industrial packing |
Pivoting Point System | 110 degrees (CLIP top) |
Product Combination | No |
Side Adjustment | +/- 2 mm |
Spezification | top |
Type Of Depth Adjustment | convenient with spiral screw |
Type Of Side Adjustment | With screw |
